Comprehensive Guide to Conical Twin Screw Barrels Maintenance

What Is a Conical Twin Screw Barrel and Why Does It Matter for Your Equipment?

Key Features That Define a Conical Twin Screw Barrel

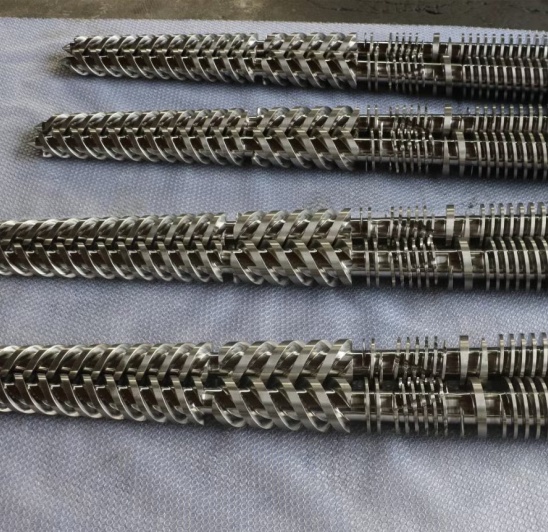

A conical twin screw barrel is a big deal in extrusion machines. Its tapered shape makes it a champ at squishing and mixing materials. This design shines in PVC processing lines. The conical twin-screw barrel is specially designed for the production of WPC boards, doors, foam boards, SPC flooring, and all PVC products. It’s tough to build, often includes bimetallic layers or SKD inner linings for extra strength. The advanced bimetallic and SKD inner lining technology can handle both virgin and recycled materials, with the raw material capable of incorporating 5%–300% calcium carbonate.

Plus, the bimetallic barrel for the twin screw extruder gets a 1-3mm thick alloy coat sprayed on the inner wall. This coat fights off corrosion, wear, and high heat like a pro, making it perfect for heavy-duty jobs where durability is key.

How This Component Impacts Performance and Output

The conical twin screw barrel boosts how well your extruder works. Its tapered shape mixes materials smoothly and builds pressure just right. This leads to even melting and steady output. Tungsten carbide alloy combined with ceramic dual-layer alloy coating technology in the discharge and mixing zones, focusing on protecting the high-wear areas of the screw, extending its service life. These tricks cut downtime for fixes or part swaps.

In setups with any calcium carbonate ratio, we have extended the screw lifespan by over 30%. This means less spending and better profits for manufacturers.

Common Industrial Applications That Depend on It

Conical twin screw barrels are must-haves for industries working with thermoplastics, especially PVC products. They’re used to make:

1. WPC (Wood Plastic Composite) boards

2. Foam boards

3. SPC (Stone Plastic Composite) flooring

4. PVC pipes

5. Doors and window profiles

   CHUANGRI SCREW PVC Conical Twin-Screw Barrel is a star for cranking out PVC pipes with precision. Their knack for handling virgin and recycled materials makes them great for eco-friendly production, too.

How Often Should You Maintain a Conical Twin Screw Barrel for Optimal Efficiency?

Maintenance Intervals Based on Usage Intensity

How often you check your conical twin screw barrel depends on how hard it’s working. For non-stop shops or those using gritty fillers like calcium carbonate, monthly peek-ins are smart. For lighter, single-shift setups, checking every three months works fine. High-performance components like those with bimetallic alloy layer(welded) construction last longer but still need regular love to avoid pricey breakdowns.

Warning Signs That Indicate Immediate Attention Is Needed

Some red flags scream for quick action:

1. Wonky product quality or sizes that don’t stay put

2. Spiking motor load or energy use

3. Weird noises during runs

4. Scratches or wear inside the barrel.

   These hints often mean internal wear or misalignment. Ignoring them could make things way worse.

Benefits of Regular Maintenance for Long-Term Operation

Keeping up with maintenance stretches your equipment’s life, cuts surprise downtime, and keeps output steady. When done right:

1. Machines run smoothly

2. Power bills shrink

3. Fewer products get rejected.

   Regular checks catch issues like abrasive wear or tiny cracks before they tank your production.

What Are the Most Effective Methods for Maintaining a Conical Twin Screw Barrel?

Cleaning Techniques That Prevent Wear and Build-Up

Good cleaning stops leftover material from gumming up the barrel, which can clog or mess with heating.

Manual Cleaning vs. Automated Systems

Manual cleaning means taking parts apart and scrubbing with special tools. It’s a bit of work but super thorough, great for shutdowns. Automated purging systems shoot cleaning compounds through at low speed to clear out leftover plastics without tearing things down.

Importance of Temperature and Material Considerations

Cleaning needs to match your processing temps. Too much heat can turn leftover material into crusty deposits that are a pain to scrape off. Materials packed with fillers like calcium carbonate need more frequent purging since they’re extra abrasive.

Lubrication Practices to Reduce Friction and Extend Lifespan

Lubrication keeps metal parts from grinding against each other in the extruder.

Choosing the Right Lubricant for Your Barrel Type

Pick high-temp industrial greases that play nice with bimetallic alloys or nitrided surfaces. Steer clear of lubricants that mess with your plastics or break down under heat. Proper lubrication ensures smooth rotation of screws at optimal rpm levels, such as CR65/132 3100 Φ65/132 60-70, keeping output steady without stressing the machine.

Inspection Protocols to Detect Early Damage or Misalignment

Routine checks spot early damage that could sneak by until things break.

Using Measurement Tools for Accuracy

Use precision tools like micrometers to check screw flight wear or barrel size changes. Thermal imaging can find hot spots from misalignment or too much friction, key signs of trouble brewing.

Which Issues Commonly Affect Conical Twin Screw Barrels and How Can You Fix Them?

Wear Patterns That Signal Mechanical Problems

Screw barrels face different kinds of wear based on what you’re processing.

Abrasive Wear, Corrosive Wear, and Fatigue Cracks

Wear resistance is far better than that of a nitrided screw, especially when using special alloy powders being sprayed and welded on the top of screw flights. Still, even these tough designs can get hit with:

1. Abrasive wear from gritty fillers like glass fiber or CaCO₃

2. Corrosive wear from harsh plastics

3. Fatigue cracks from hot-cold cycles over time.

   Fixes include resurfacing worn spots with PTA welding or swapping out badly damaged parts.

Deformation or Misalignment: Causes and Solutions

Deformation often comes from long hours under high heat without proper cooling.

Thermal Expansion Effects

Heat can nudge screws and barrels out of alignment over time. Laser calibration tools can realign them to restore their perfect shape. Adding thermal insulation jackets helps keep temperatures steady and avoids these shifts.

Material Build-Up or Clogging Inside the Barrel

Gunk buildup inside the barrel can mess up material flow and output.

Cleaning Procedures to Restore Flow

A mix of chemical purging agents and manual scrubbing usually clears blockages. For tough, hardened gunk near discharge zones, ultrasonic cleaning can zap it without harming coatings like ceramic dual-layer alloy coating technology.

Why Choose CHUANGRI SCREW for High-Quality Conical Twin Screw Barrels?

Who We Are at CHUANGRI SCREW

At CHUANGRI SCREW, we’re pros at crafting precision screws and barrels for tough industrial jobs. Our production engineers blend deep know-how with hands-on skills across all kinds of plastic processing. At CHUANGRI SCREW, every set of screws and barrels is a masterpiece of professional design and meticulous craftsmanship.

Our Expertise in Manufacturing Conical Twin Screw Barrels

Precision Machining Capabilities

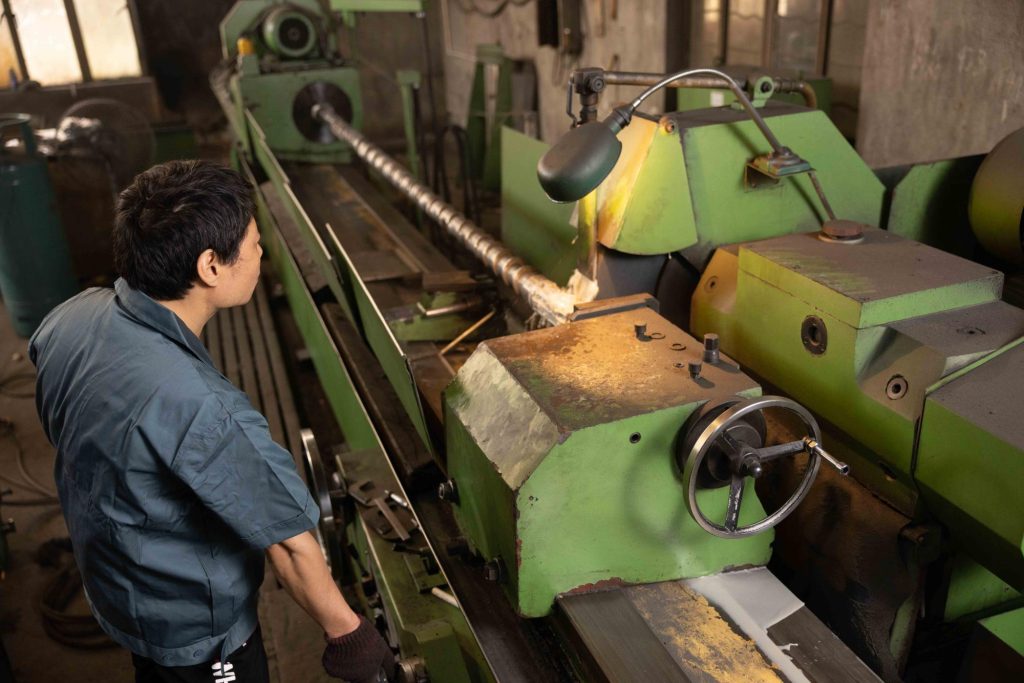

We use tight-tolerance CNC machining across our production lines, ensuring spot-on accuracy even for heavy-duty jobs.

Materials Used in Our Production Process

We pick top-grade steels like 38CrMoAlA, 40Cr, 42CrMo, SKD61, chosen for their strength against heat or stress.

Product Range Specific to Conical Twin Screw Barrels

Customizable Designs Based on Client Requirements

We offer over 10 different screw structural designs to accommodate varying raw material ratios, including high-calcium PVC mixes.

Compatibility with Various Extrusion Machines

Our conical twin screw barrels work with top models like KRAUSSMAFFEI, and MAPLAN.

Quality Assurance and After-Sales Support from CHUANGRI SCREW

From checking raw materials to testing final assemblies, we stick to strict ISO-level quality rules, ensuring rock-solid reliability for every unit shipped worldwide.

FAQ

Q: What is a conical twin screw barrel used for?

A: It’s mainly used for plastic extrusion, like making PVC pipes, WPC boards, foam panels, and SPC flooring, with great mixing thanks to its tapered design.

Q: How do I know if my conical twin screw barrel needs maintenance?

A: Watch for wonky product quality, higher energy use, odd noises, or visible wear inside the barrel.

Q: What materials are best suited for making durable conical twin screw barrels?

A: Alloys like 38CrMoAlA with bimetallic coatings handle abrasion and corrosion well under high heat.

Q: Can I use recycled materials with a conical twin screw barrel?

A: Yup! SKD linings let it handle virgin and recycled materials, even with up to 300% calcium carbonate.

Q: How often should I clean my conical twin screw barrel?

A: Monthly for heavy use; every three months for lighter production works fine.
