Injection Molding Screw Barrel Design: Key Factors and Tips

What Are the Core Components of an Injection Molding Screw Barrel?

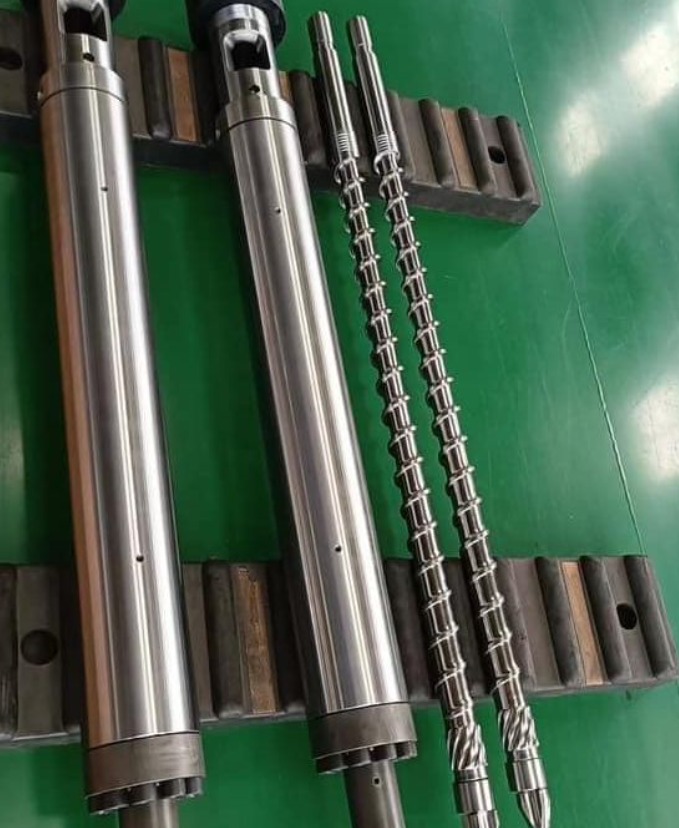

The Role of the Screw in Injection Molding

The screw is a super key part in injection molding. It does three big jobs. It pulls in solid plastic bits. It melts them nice and even. And it pushes the melted stuff into the mold just right. This makes sure the final product looks awesome. The screw’s shape is a big deal. Things like its width, length-to-width ratio (L/D), and squeeze ratio decide how well it melts and mixes the plastic. Plus, screws built for specific plastics keep stress low. They make the melted plastic super smooth and steady.

How Does the Barrel Influence the Molding Process?

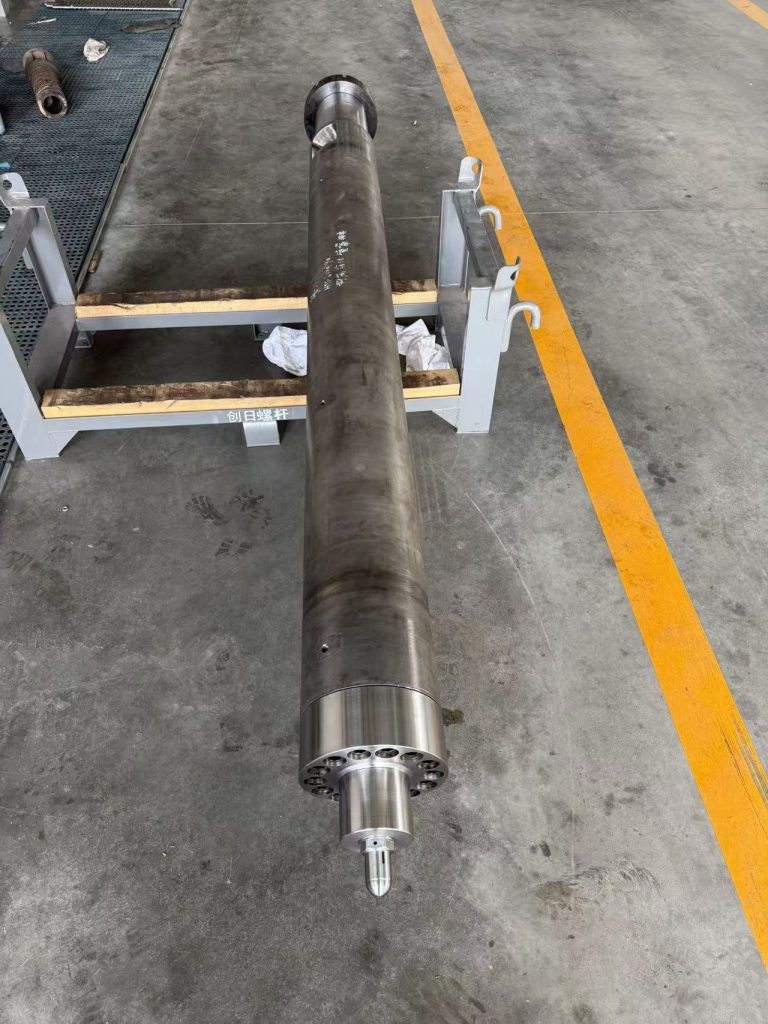

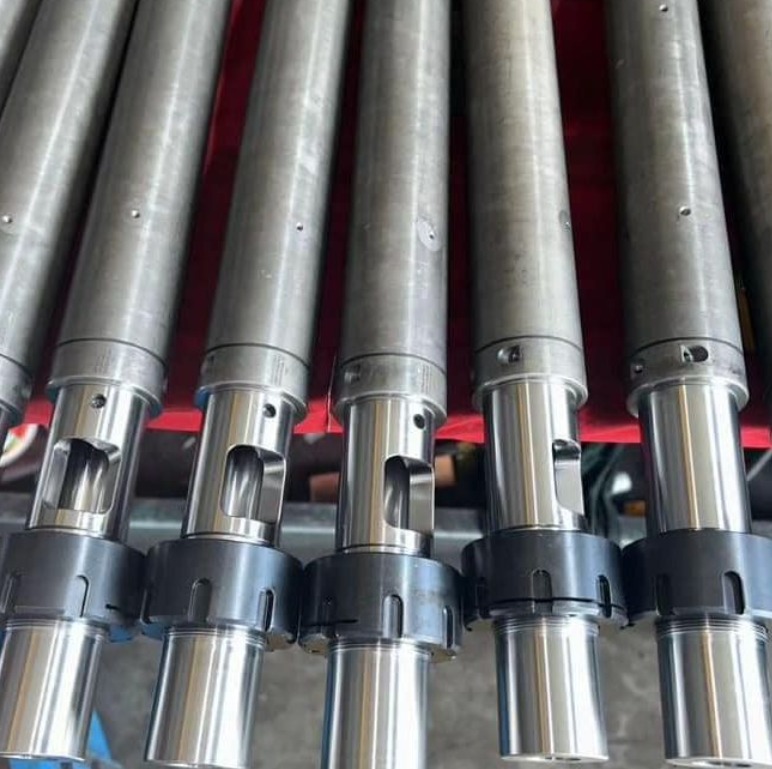

The barrel holds the screw. It’s super important for keeping the temperature spot-on. Its main job is to create a steady space where plastics can heat up to their melting point without breaking down. The barrel’s inside needs to be really tough. It has to handle rough or harsh materials. Also, it must line up perfectly with the screw. This stops melted plastic from leaking or getting stuck. A good barrel speeds up the process. It also makes the melted plastic more even.

Materials Commonly Used in Screw Barrel Manufacturing

Screw barrels need to be strong to handle hot and high-pressure conditions. They’re usually made from tough stuff like 38CrMoAlA, H13 steel, or bimetallic alloys. These materials are picked because they don’t wear out fast. They stay steady in heat and resist rust. Special tricks like nitriding or bimetallic coating make them last longer. These add protective layers to fight damage from rough fillers or harsh plastics.

How to Optimize Injection Molding Screw Barrel Performance?

Factors Affecting Performance and Longevity

Temperature Control and Its Impact

Keeping the temperature just right is super important for good melt quality. Too much heat can mess up the plastic. Too little heat leaves it half-melted. Modern screw barrels often use cool heating setups with different zones. These keep the heat even along the barrel. This cuts down on heat stress. It also makes the process more efficient.

Importance of Proper Maintenance Practices

Taking care of the screw barrel is a must to keep it going strong. Cleaning off leftover plastic after each run stops buildup. Buildup can cause trouble or damage over time. Checking parts for wear or rust lets you fix or replace them early. This keeps everything running smoothly.

Tips for Enhancing Efficiency in Injection Molding

1. Customizing Screw Design: Shape the screw to fit the plastic type. This makes mixing and melting better.
2. Using High-Quality Materials: Pick bimetallic coatings or nitrided surfaces. These handle rough or harsh plastics well.
3. Upgrading Heating Systems: Get modern heating elements with exact controls. They keep temperatures steady.
4. Routine Inspections: Check if the screw and barrel line up right. This avoids extra wear.
5. Training Operators: Teach workers to spot problems early. This stops big breakdowns.

For example, CHUANGRI SCREW makes screws designed just for your needs. These work great for all sorts of molding tasks.

Why Is Precision Critical in Injection Molding Screw Barrel Design?

The Relationship Between Design Accuracy and Product Quality

Precision in screw barrel design is super linked to product quality. A well-made design ensures steady material flow. It also ensures even melting and exact injection pressure. These are key for making parts without flaws. Any mistakes in size can cause issues. For example, uneven walls or surface marks might show up on finished products. Getting it right means better parts and happier customers.

Challenges in Achieving Precision During Manufacturing

Making super precise screw barrels is tough. Here are some challenges:

1. Material Selection: You need alloys that are strong but easy to shape. This balance is hard to get right.
2. Advanced Machining Techniques: Stuff like CNC threading, grinding, polishing, and nitriding needs super careful work.
3. Strict Quality Checks: Every part must pass tough tests to meet global standards.

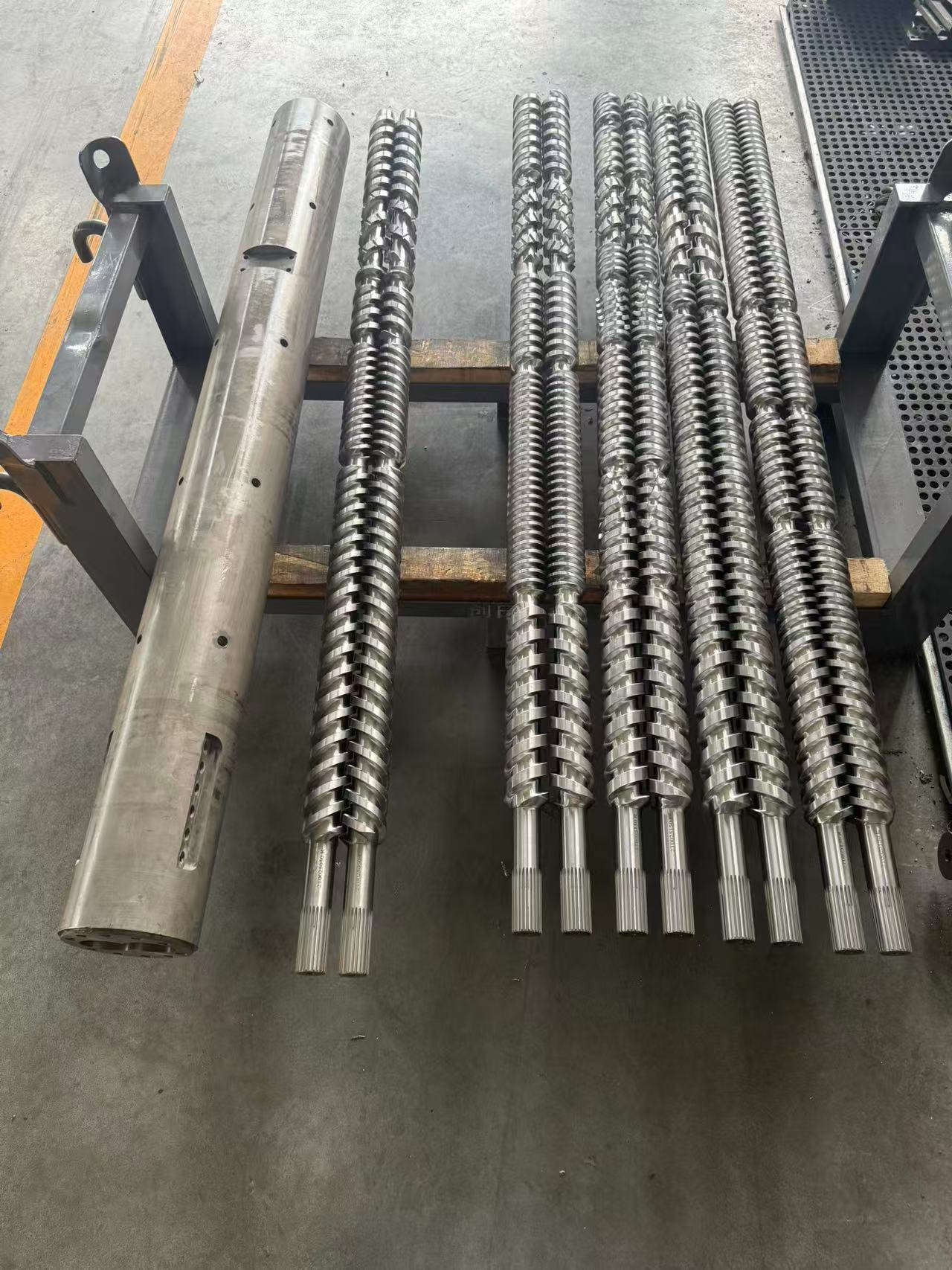

CHUANGRI SCREW injection molding barrel uses top-notch CNC machining tools and strict checks. Their bimetallic barrels are famous for fighting wear. They also last a long time.

Why Choose CHUANGRI SCREW for Your Injection Molding Screw Barrel Needs?

Our Expertise in Injection Molding Screw Barrels

High-Quality Materials for Durability and Efficiency

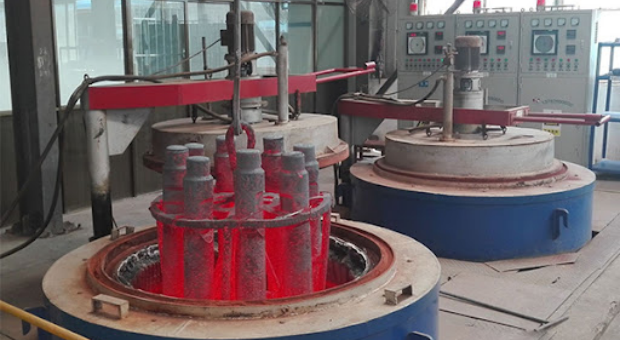

At CHUANGRI SCREW, every screw and barrel is a work of art. They’re built with care and made to last. Picking the right materials is super key. They need to handle high pressure, heat, and wear. CHUANGRI SCREW uses tough stuff like 38CrMoAlA, H13 steel, and bimetallic alloys. These are great at resisting wear. They stay steady in heat and fight rust. Plus, special processes like nitriding or bimetallic coating make them even stronger. Nitriding adds a hard surface layer. These fights wear even in tough conditions.

Advanced Manufacturing Techniques for Precision Engineering

Precision is the heart of CHUANGRI SCREW’s work. They use top CNC machining tools for threading, turning, milling, grinding, polishing, nitriding, quenching, and bimetallic coatings. These steps make sure every screw and barrel meets high standards. For example, milling machines cut deep spiral grooves along the screw’s width. This makes it work better. The final polishing step smooths out flaws. This stops plastic from sticking during molding.

CHUANGRI SCREW also uses HVOF tungsten carbide coating. This makes surfaces super tough against wear. The coating sticks tightly to the base material. These methods help CHUANGRI SCREW make super-precise products.

Customization Options Tailored to Your Specific Requirements

CHUANGRI SCREW is awesome at making custom screws for specific needs. Need a screw with a unique width-to-length ratio? Or one for a certain plastic type? Their team can do it. You can also pick materials like high-nickel alloys or tungsten carbide coatings. These work great for rough plastics.

Custom designs let you tweak things like shear stress control and mixing efficiency. For example, screws with barrier zones make the melt super-even. They also cut cycle times. This flexibility helps CHUANGRI SCREW serve industries like car parts or medical tools. For instance, a custom screw for a medical device might need to handle a super thick plastic. CHUANGRI SCREW can design it to melt and mix just right.

Our Commitment to Customer Satisfaction

CHUANGRI SCREW sticks to ISO 9001:2008 standards. This ensures smooth and steady production. Our motto—”Pursuing Excellence: Quality, Efficiency, and Service”—shows in everything they do.

We put customers first with expert advice. This helps you pick the best screw barrel for your job. We also work fast. Standard models can ship in three days after drawings are confirmed. For urgent needs or machine breakdowns, our factory runs seven days a week. If quality issues pop up during the warranty period, CHUANGRI SCREW steps up. We fix it until you’re happy. This dedication makes them a trusted name in over 30 countries.

FAQ

Q: What factors should I consider when selecting an injection molding screw barrel?

A: Think about the plastic type you’re using. Check the screw’s shape, like its squeeze ratio. Look for wear-resistant features, like bimetallic coatings or nitriding layers. Also, consider custom options for your needs.

Q: How does proper maintenance extend the lifespan of a screw barrel?

A: Regular cleaning stops plastic buildup. This prevents damage over time. Routine checks for wear or rust help you fix things early. This keeps the system running great.

Q: How do advanced heating systems improve injection molding efficiency?

A: Modern systems have multiple heat zones. These keep temperatures even along the barrel. This cuts heat stress. It also makes the melt more consistent.

Q: What factors influence the lifespan of an injection molding screw barrel?

A: Lots of things affect how long a screw barrel lasts. The quality of materials is a big one. So are operating conditions like heat and pressure. Cleaning off leftover plastic buildup helps a ton. Also, making sure the screw and barrel line up right is super important.

Q: Why is temperature control important in injection molding?

A: Steady temperature makes sure the melt quality is good. It stops plastics from breaking down due to too much heat. It also prevents half-melting from low heat.
